TLT Shelters / Cabinets
- We work to continuously improve our shelters according to crime and vandalism trends.
- Our shelters offer multiple layers of protection against theft, acting both as a deterrent and allowing more time for intervention.
- We design and manufacture all shelters to meet the client’s exacting requirements.
Shelter Development

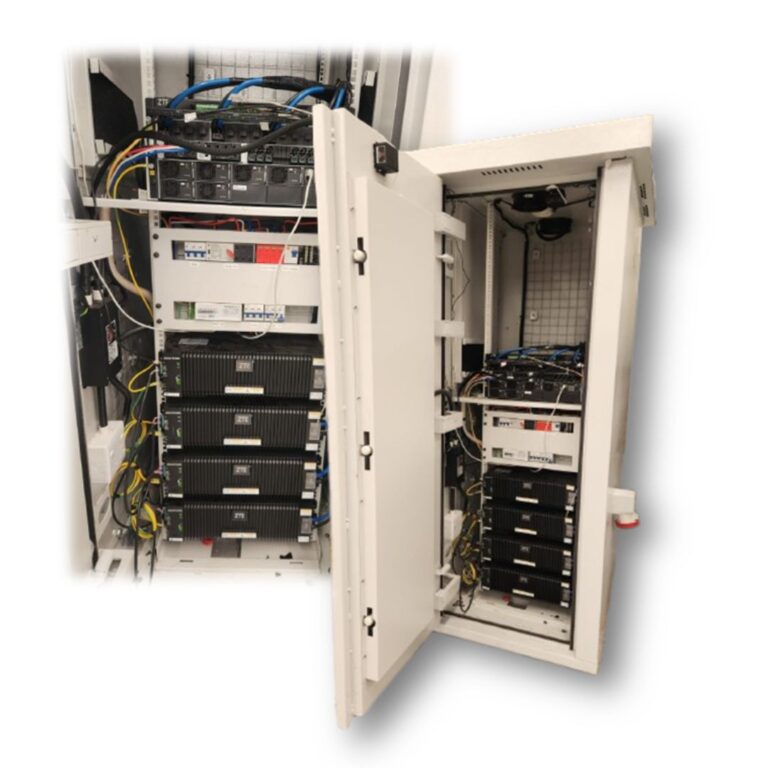

Single MNO security cabinet. Features:
- Internal Hinges
- Electronic Locking
- Reinforced concrete infill
- 18RU Telecoms Compartment
- 22RU Battery Compartment
- Internal Rack Mounted DB with ATS
- Internal Rack Mounted DB with ATS
- Bottom cable entry
- Free cooling with dust filters (48VDC / 230VAC)
- Max. equipment depth 560mm
- 32A 5pin generator plug

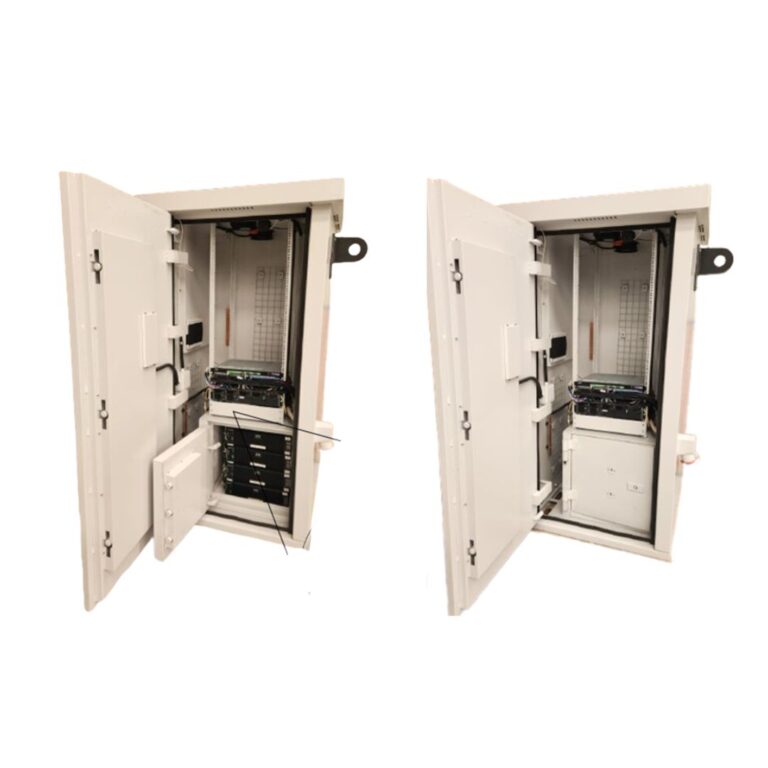

Dual-zone shelter featuring a secondary battery compartment with its own mechanical or electronic access control system Features:
- Integrated Battery Safe
- 24RU Telecoms Compartment
- 12RU Battery Safe with 2 x Mechanical Locks
- Bottom cable entry; front LHS
- Slide-out DB with Automatic Transfer Switch
- Lower height

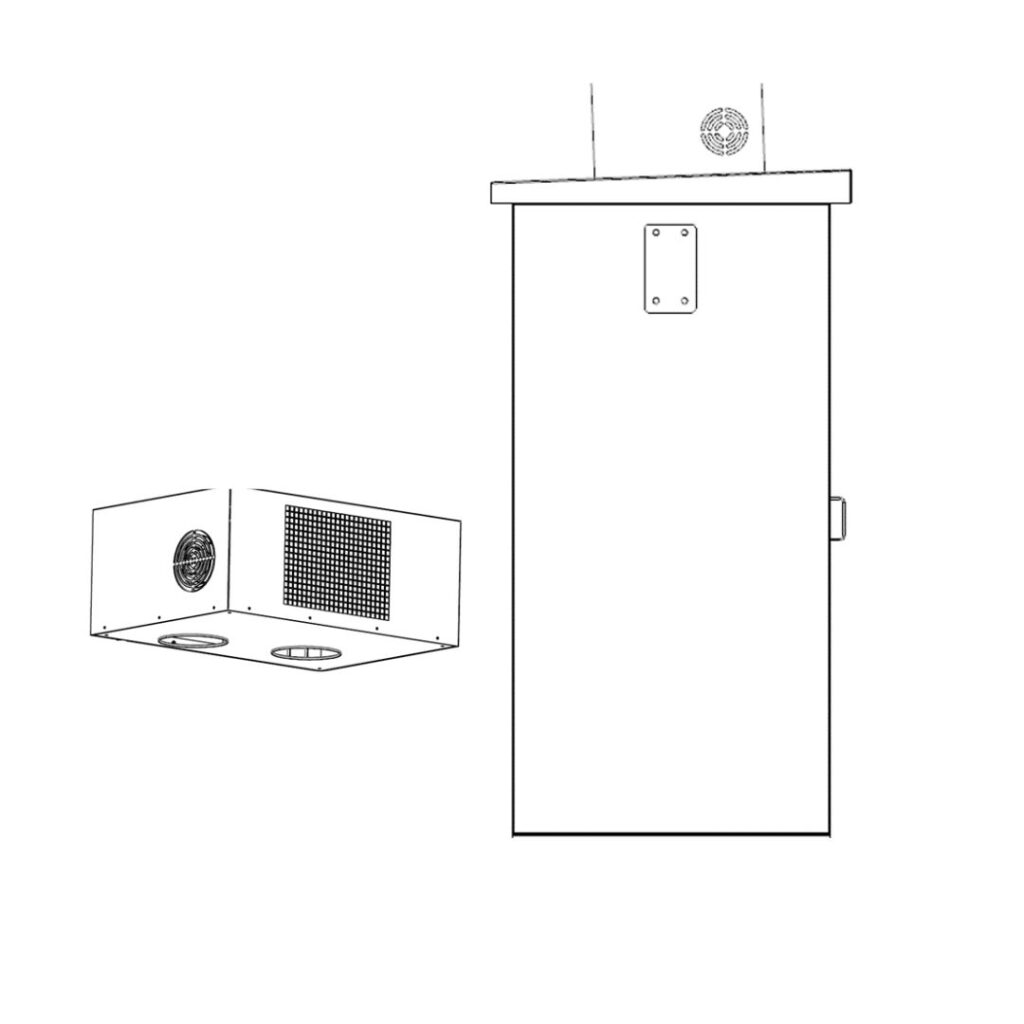

Coastal Cabinet
Our newly developed Shelter with a roof mounted AC unit to discourage vandalism and minimise the total equipment footprint.
- 3CR12 Construction
- Roof-mounted Air conditioner (5000BTU)
- Internal air circulation to minimise dust ingress
- Internally mounted AC controller
- Minimises openings
- Secured from inside the shelte
- Vandal protection
